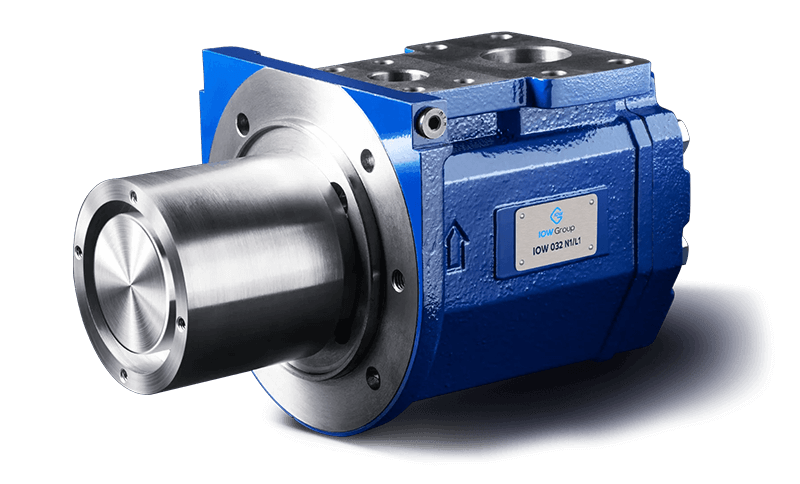

Magnaline 032 N1/L1

Ideal for flow volumes of 21.6 - 95.2 l/min (5.7 - 25.1 gpm)

Magnaline 032 N1/L1 - specifications

  • IOW 032 N1/L1 has a flow volume of 21.6 - 95.2 l/min (5.7 - 25.1 gpm)
  • Max differential pressure 16 Bar (232 psi)
  • Pump connected to electric motor using a magnetic coupling, meaning there is no mechanical contact between pump and motor, and pumped liquid is fully enclosed within the pump
  • Pressure relief valve installed internally to protect the pump
  • 2 different strengths of magnetic coupling available, depending on the viscosity of liquid to be pumped
  • Connections for steam tracing to heat the pumped liquid up and reduce viscosity
  • 2 rotor leads available, depending on performance required
  • Fluid viscosity: 1.4—1500 cSt.
  • Fluid temperature:
    -20 to +180°C (-4 to +356°F)
  • Max RPM: 3600
