The Magnaline positive displacement triple screw pump range

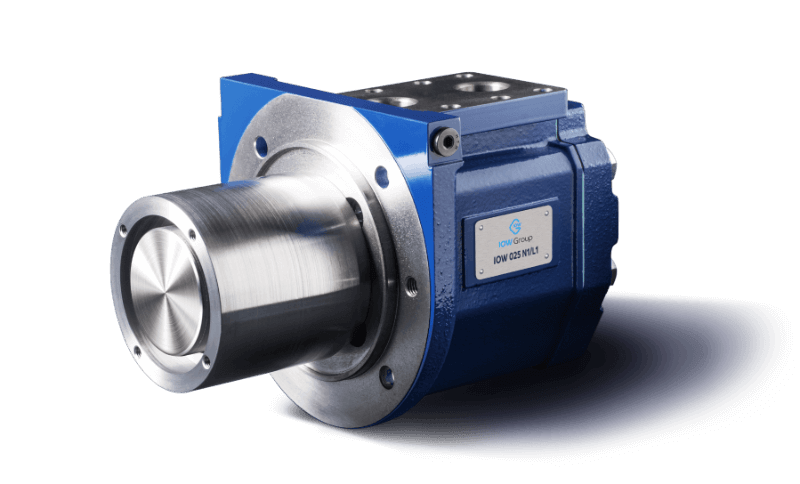

Magnaline 025 N1/L1

Ideal for flow volumes of 8 - 41 l/min (2 - 11 gpm)

Magnaline 025 N1/L1 - specifications

  • IOW 025 N1/L1 has a flow volume of 8-41 l/min (2-11 gpm)
  • Max differential pressure 16 Bar (232 psi)
  • Pump connected to electric motor using a magnetic coupling, meaning there is no mechanical contact between pump and motor, and pumped liquid is fully enclosed within the pump
  • Pressure relief valve installed internally to protect the pump
  • 2 different strengths of magnetic coupling available, depending on the viscosity of liquid to be pumped
  • Connections for steam tracing to heat the pumped liquid up and reduce viscosity
  • 2 rotor leads available, depending on performance required
  • Fluid viscosity: 1.4—1500 cSt.
  • Fluid temperature:
    -20 to +180°C (-4 to +356°F)
  • Max RPM: 3600

Download the datasheet for the IOW 025 N1/L1

IOW Group Magnaline 025 N1/L1 Data Sheet

Advantages

  • Designed to endure a long, problem free operation
  • Self lubricating
  • Can be used for a number of different liquids
  • Can be approved to a number of classification societies
  • Same day dispatch on spares
  • Environmentally friendly
  • Use of an angle bracket aids mounting

Applications

  • Supplying fuel and lubrication to diesel engines
  • Transferring oil in refineries, tank farms and on board ships
  • Used by big machines, hydraulic systems and transformer oils
  • Used for lubrication of gears, hydro turbines, turbines powered by steam or gas and paper machines
